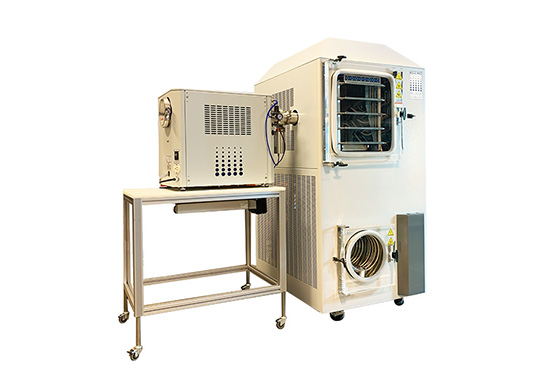

Revo® Pro Freeze Dryer
Revo Pro Freeze Dryer
Innovation for Your Lab Scale Freeze Drying Needs
Revo Pro with LyoPAT® offers robust, technologically innovative, advanced freeze dryer controls for all of your process needs. This freeze dryer is perfect for researchers who want to perform full laboratory tray dryer runs and is available with 1 to 5 shelves and 2 to 10 sq ft of shelf surface area.
Advanced Control Technology
- Provides the data you need for cycle transfer and optimization
- Determines critical process parameters such as Kv, cake resistance and mass flow
- Delivers direct measurement of heat flux via proprietary AccuFlux™ technology
- Creates efficient freeze drying cycles with AutoDry™
- Maximizes shelf temperature during primary drying while not exceeding critical temperature parameters
DOWNLOAD PDF
Revo Pro Freeze Dryer
About the RevoPro Freeze Dryer
CONTROL SYSTEM
- PC/PLC with ethernet and remote Internet connectivity
- Manual and automatic operating modes
- Graphic and numeric data collection
- Automatic System and Leak Rate Testing
- Options for Protocol Optimization and Controlled Nucleation
SHELF SYSTEM
- 2 to 10 sq ft (0.185 to 0.929 sqM) of shelf area
- Large shelves for more product capacity – 12″ x 24″ (304mm x 608mm)
- Increased Stoppering Pressure – for 2ml vials
- 316L stainless steel on all wetted parts
CONDENSER
- 6″ vapor port standard
- Exposed coil condenser for maximum efficiency
- Hot gas defrost
REFRIGERATION
- High reliability scroll compressors
- Oversized refrigeration components for high reliability
- CFC-Free, non-proprietary refrigerants
VACUUM
- Pirani vacuum sensor standard
- Vacuum control standard
- Gas backfill standard
- 330 LPM corrosion resistant vacuum pump
OTHER
- Sanitary style fittings on all sensor and vacuum ports
- Built-in validation port
Note: Specifications subject to change without notice. All specifications based on 20C ambient on 60Hz.
Millrock Technology’s RevoPro with LyoPAT combines the most advanced technology with our robust and dependable Revo freeze dryer.
LyoPAT state-of-the-art control capabilities to monitor and control every possible aspect of the freezing and drying processes.
AccuFlux the only technology that provides heat flow monitoring and control— including direct measurement of Kv and mass flow—throughout the entire freezing and primary drying processes.
AutoDry totally automates primary drying by driving as much heat into the product as possible without exceeding the critical product temperature.
FreezeBooster® controlled nucleation enables the ability to study freezing approaches and its effect on the product and product cycle.
Millrock Reporter provides batch reporting in the format you design.
Features in the Revo Pro are patented and patent pending.
***FreezeBooster Optional
